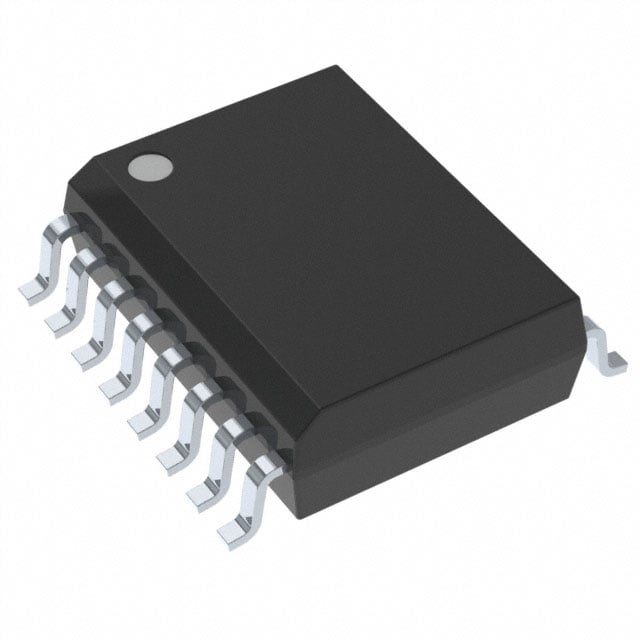

UCC21520ADWR Isolated Dual-Channel Gate Driver

Texas Instruments·Power Management (Gate Drivers)·ActiveNew & Original

UCC21520ADWR Isolated Dual-Channel Gate Driver
On request
Order quantityUnit priceTerms
Pricing on request — send your BOM or target quantity and we quote line by line.

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

  • New & Original — date-code photo and documentation with every shipment
  • Lead time on request
  • MOQ 1 pc — flexible for prototypes and production runs
  • Tape & reel / cut tape and custom packaging available
  • Power Management (Gate Drivers) line — availability, approved alternates and pricing checked line by line
Get A Quote Back to Parts

Specifications

ManufacturerTexas Instruments
Manufacturer part numberUCC21520ADWR
CategoryPower Management (Gate Drivers)
DescriptionTI UCC21520ADWR isolated dual-channel gate driver, 4 A source / 6 A sink, 5.7 kV RMS reinforced isolation, 33 ns typical propagation delay, SOIC-16 — drives SiC MOSFETs, IGBTs and power MOSFETs in 800 VDC and high-density converter stages
Package / caseSOIC-16 (DW), 10.3 x 7.5 mm
Mounting typeSMD
ConditionNew & Original
Datasheethttps://www.ti.com/lit/ds/symlink/ucc21520.pdf
FunctionIsolated dual-channel gate driver
Peak output current4 A source / 6 A sink
Isolation5.7 kV RMS (1 min, UL 1577)
Reinforced isolation8000 V PK per VDE 0884-17
Propagation delay33 ns (typ)
Minimum pulse width20 ns
CMTI>125 V/ns
Input supply (VCCI)3 V ~ 18 V
Output supply (VDD)up to 25 V
Configurationsdual low-side, dual high-side, half-bridge with programmable dead time
ApplicationsSiC / IGBT / MOSFET up to 5 MHz
PackageSOIC-16 (DW)
HS code8542399000

Availability & supply

StockSourced to order
Minimum order (MOQ)1 pc
Lead timeLead time on request
Unit priceOn request — quoted per quantity
PackagingTape & reel, 2000 pcs per reel (add suffix R)
NotesUCC21520ADW (tube) and UCC21521 / UCC21530 family variants sourced on request
