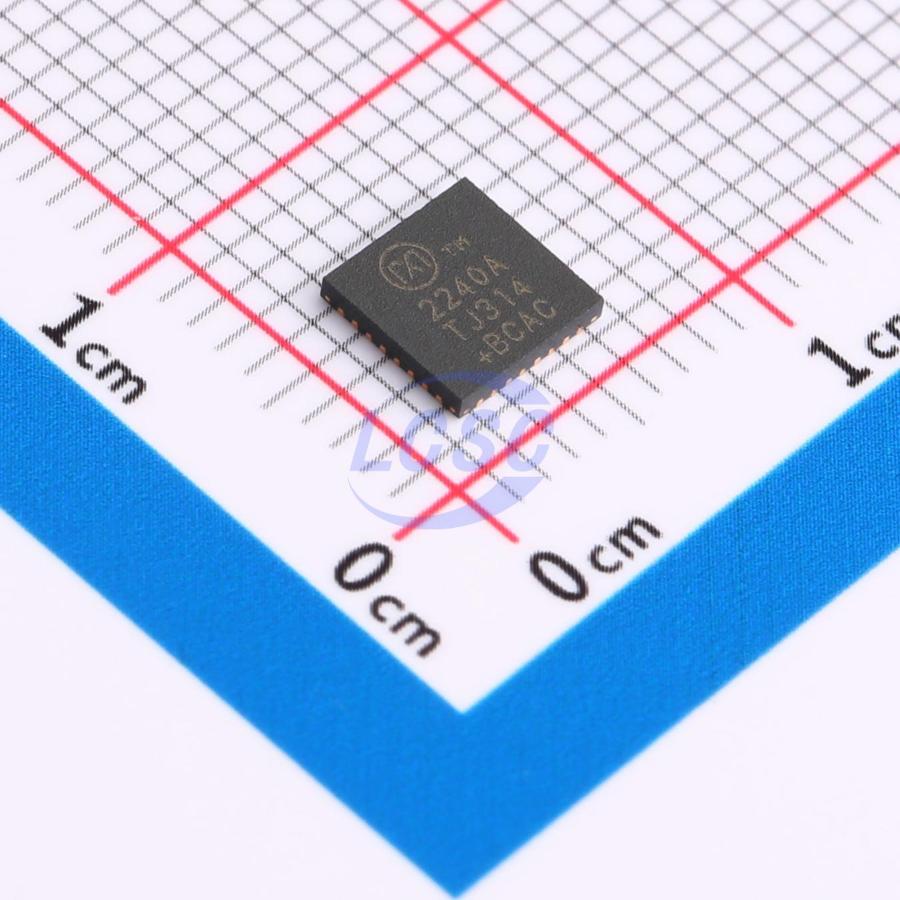

TMC2240 36V 2.1A Smart Stepper Driver

ADI / Trinamic·Stepper Motor Driver·ActiveNew & Original

TMC2240 36V 2.1A Smart Stepper Driver
5.7879 USD
Order quantityUnit priceTerms
1-97.5691 USDEXW
10-296.78 USDEXW
30-996.2749 USDEXW
100+5.7879 USDEXW

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

  • New & Original — date-code photo and documentation with every shipment
  • Lead time on request
  • MOQ 1 pc — flexible for prototypes and production runs
  • Tape & reel / cut tape and custom packaging available
  • Stepper Motor Driver line — availability, approved alternates and pricing checked line by line
Get A Quote Back to Parts

Specifications

ManufacturerADI / Trinamic
Manufacturer part numberTMC2240ATJ+T
CategoryStepper Motor Driver
DescriptionTrinamic TMC2240 smart stepper driver with 36 V, 3.0 A peak H-bridges, non-dissipative integrated current sensing, stealthChop2 and StallGuard stall detection over SPI, UART or STEP/DIR interfaces.
Package / caseTQFN-32 (5 x 5 mm)
Mounting typeSMD
ConditionNew & Original
Vm4.5-36 V
Imax3.0 A
RDS(on)230 mOhm
Microstep256
InterfaceSPI / UART / STEP-DIR
Temp-40 to +125 C

Availability & supply

StockSourced to order
Minimum order (MOQ)1 pc
Lead timeLead time on request
Unit price1-9: 7.5691 · 10-29: 6.78 · 30-99: 6.2749 · 100+: 5.7879
PackagingTape & reel
NotesC7429724; integrated current sensing removes two external sense resistors; diagnostic outputs for driver and motor temperature; LCSC USD ladder, verify at quote

Alternatives & cross-references

Pin-compatible
Ask us — we source cross-references on request.
Same spec · other brand
Ask us — we source cross-references on request.
Functional equivalent
Ask us — we source cross-references on request.

Quality & compliance

Traceability
Every line ships with manufacturer / distributor documentation and a date-code photo taken before dispatch.
Incoming inspection
Parts checked for marking, packaging and count on receipt; X-ray / decapsulation available on request for high-value lines.
Certificates on request
COC / COA / RoHS declaration issued with the shipment. Full lot traceability kept for 24 months.
