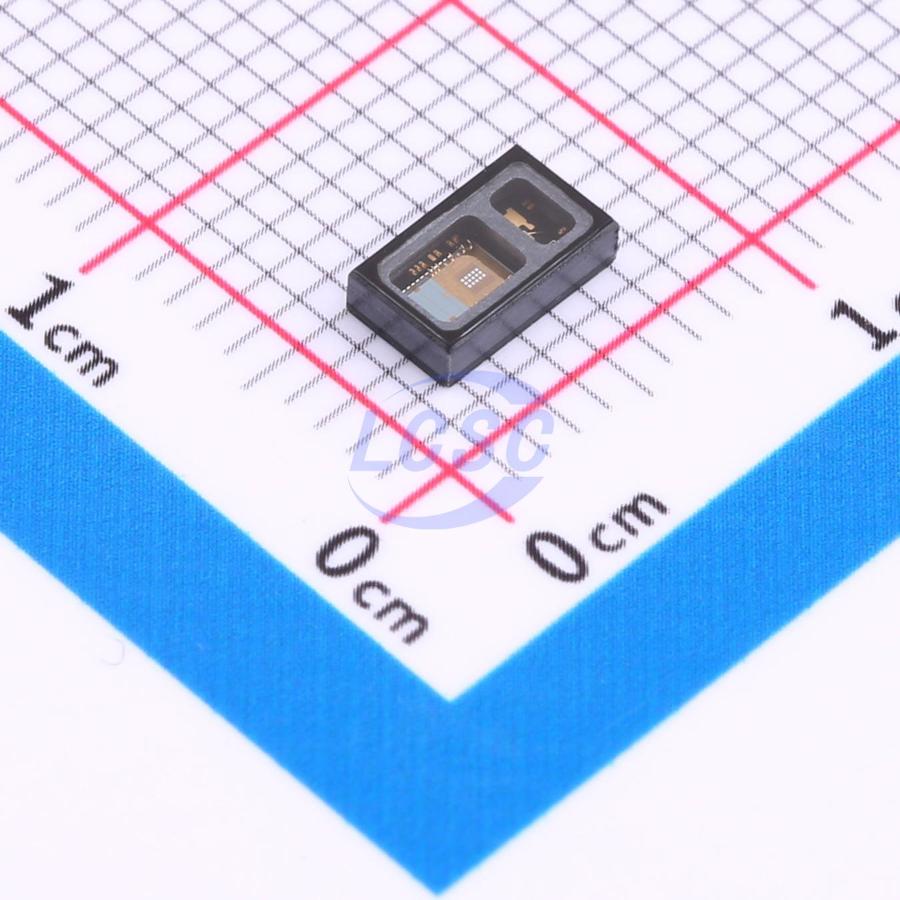

MAX30102EFD+T Pulse Oximeter Sensor

Analog Devices (Maxim)·Optical Sensor·ActiveNew & Original

MAX30102EFD+T Pulse Oximeter Sensor
US$12.2714
Order quantityUnit priceTerms
1-9US$14.7313EXW
10-29US$14.1511EXW
30-99US$13.1482EXW
100+US$12.2714EXW

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

  • New & Original — date-code photo and documentation with every shipment
  • Lead time on request
  • MOQ 1 pc — flexible for prototypes and production runs
  • Tape & reel / cut tape and custom packaging available
  • Optical Sensor line — availability, approved alternates and pricing checked line by line
Get A Quote Back to Parts

Specifications

ManufacturerAnalog Devices (Maxim)
Manufacturer part numberMAX30102EFD+T
CategoryOptical Sensor
DescriptionMAX30102EFD+T integrated pulse oximetry and heart-rate sensor module with internal red and IR LEDs, photodetector, optical elements and low-noise electronics with ambient light cancellation, in a 5.6 x 3.3 x 1.55 mm 14-pin optical package.
Package / caseOESIP-14
Mounting typeSMD
ConditionNew & Original
Resolution18-bit
InterfaceI2C
Supply1.7 to 2 V (LED rail 3.3 V)
Current1.2 mA
Shutdown0.7 uA typical
Featuresambient light cancellation, on-chip temperature sensor, programmable sample rate and LED current
Temp-40 to 85 C

Availability & supply

StockSourced to order
Minimum order (MOQ)1 pc
Lead timeLead time on request
Unit price1-9: US$14.7313 · 10-29: US$14.1511 · 30-99: US$13.1482 · 100+: US$12.2714
PackagingTape & reel per manufacturer standard
NotesLCSC product code C6454833; wearables, fitness bands, patient monitors; LCSC USD ladder, verify at quote.

Alternatives & cross-references

Pin-compatible
Ask us — we source cross-references on request.
Same spec · other brand
Ask us — we source cross-references on request.
Functional equivalent
Ask us — we source cross-references on request.

Quality & compliance

Traceability
Every line ships with manufacturer / distributor documentation and a date-code photo taken before dispatch.
Incoming inspection
Parts checked for marking, packaging and count on receipt; X-ray / decapsulation available on request for high-value lines.
Certificates on request
COC / COA / RoHS declaration issued with the shipment. Full lot traceability kept for 24 months.
