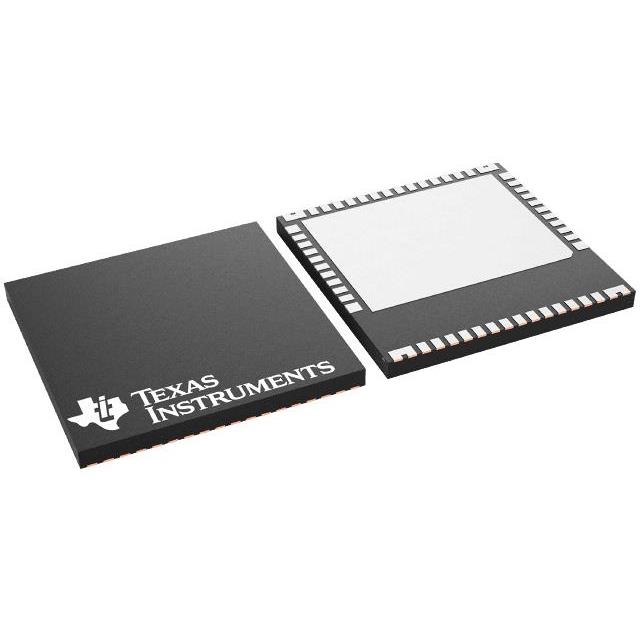

LMG3422R030 600 V GaN FET with Integrated Driver

Texas Instruments·Power Semiconductors (GaN)·ActiveNew & Original

LMG3422R030 600 V GaN FET with Integrated Driver
On request
Order quantityUnit priceTerms
Pricing on request — send your BOM or target quantity and we quote line by line.

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

  • New & Original — date-code photo and documentation with every shipment
  • Lead time on request
  • MOQ 1 pc — flexible for prototypes and production runs
  • Tape & reel / cut tape and custom packaging available
  • Power Semiconductors (GaN) line — availability, approved alternates and pricing checked line by line
Get A Quote Back to Parts

Specifications

ManufacturerTexas Instruments
Manufacturer part numberLMG3422R030
CategoryPower Semiconductors (GaN)
DescriptionTI LMG3422R030 600 V 30 mOhm GaN FET with integrated gate driver, protection and temperature reporting, up to 2.2 MHz switching, 200 V/ns hold-off, VQFN-54 — power-dense totem-pole PFC and server PSU stages
Package / caseVQFN (RQZ), 54-pin, 12 x 12 mm
Mounting typeSMD
ConditionNew & Original
Datasheethttps://www.ti.com/lit/ds/symlink/lmg3422r030.pdf
Type600 V GaN-on-Si FET with integrated driver
RDS(on)30 mOhm
Switching frequencyup to 2.2 MHz
FET hold-off200 V/ns
Slew rate20 V/ns ~ 150 V/ns (adjustable)
Supply7.5 V ~ 18 V
JEDECQualified to JEP180 for hard-switching topologies
Overcurrent protectionCycle-by-cycle with <100 ns response
Short circuitLatched protection
Surge withstand720 V while hard-switching
ReportingDigital temperature PWM output
PackageVQFN (RQZ), 54-pin, 12 x 12 mm
HS code8541290000

Availability & supply

StockSourced to order
Minimum order (MOQ)1 pc
Lead timeLead time on request
Unit priceOn request — quoted per quantity
PackagingTape & reel, 250 pcs per small reel / 2500 pcs per large reel
NotesLMG3426R030 (zero-voltage detection) and LMG3427R030 (zero-current detection) variants on request

Alternatives & cross-references

Pin-compatible
Ask us — we source cross-references on request.
Same spec · other brand
Ask us — we source cross-references on request.
Functional equivalent
Ask us — we source cross-references on request.

Quality & compliance

Traceability
Every line ships with manufacturer / distributor documentation and a date-code photo taken before dispatch.
Incoming inspection
Parts checked for marking, packaging and count on receipt; X-ray / decapsulation available on request for high-value lines.
Certificates on request
COC / COA / RoHS declaration issued with the shipment. Full lot traceability kept for 24 months.
