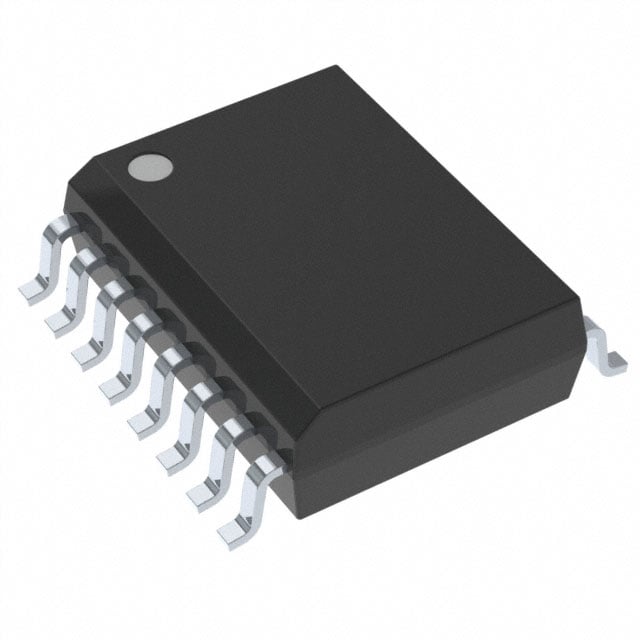

ISO7741DWR Quad-Channel Digital Isolator

Texas Instruments·Digital Isolation·ActiveNew & Original

On request

Order quantity	Unit price	Terms
Pricing on request — send your BOM or target quantity and we quote line by line.

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

New & Original — date-code photo and documentation with every shipment
Lead time on request
MOQ 1 pc — flexible for prototypes and production runs
Tape & reel / cut tape and custom packaging available
Digital Isolation line — availability, approved alternates and pricing checked line by line

Specifications

Manufacturer	Texas Instruments
Manufacturer part number	ISO7741DWR
Category	Digital Isolation
Description	TI ISO7741DWR quad-channel reinforced digital isolator, 3 forward / 1 reverse, 100 Mbps, 5000 V RMS isolation, 100 kV/us typical CMTI, wide SOIC-16 — signal isolation across high-voltage power and control domains
Package / case	SOIC-16 (DW), wide body
Mounting type	SMD
Condition	New & Original
Datasheet	https://www.ti.com/lit/ds/symlink/iso7741.pdf
Type	Quad-channel reinforced digital isolator
Channel direction	3 forward / 1 reverse
Data rate	100 Mbps
Isolation rating	up to 5000 V RMS
Working voltage	>30-year projected lifetime at 1500 V RMS
CMTI	100 kV/us (typ)
Surge capability	up to 12.8 kV
Supply range	2.25 V ~ 5.5 V
Propagation delay	10.7 ns (typ, 5 V)
Creepage / clearance	>8 mm (DW-16)
Temperature range	-55 C ~ +125 C
Package	SOIC-16 (DW)
HS code	8542399000

Stock	Sourced to order
Minimum order (MOQ)	1 pc
Lead time	Lead time on request
Unit price	On request — quoted per quantity
Packaging	Tape & reel, 2000 pcs per reel
Notes	ISO7741F (default low output) and ISO7741-Q1 automotive version available on request

Pin-compatible

Ask us — we source cross-references on request.

Same spec · other brand

Ask us — we source cross-references on request.

Functional equivalent

Ask us — we source cross-references on request.

Traceability

Every line ships with manufacturer / distributor documentation and a date-code photo taken before dispatch.

Incoming inspection

Parts checked for marking, packaging and count on receipt; X-ray / decapsulation available on request for high-value lines.

Certificates on request

COC / COA / RoHS declaration issued with the shipment. Full lot traceability kept for 24 months.
