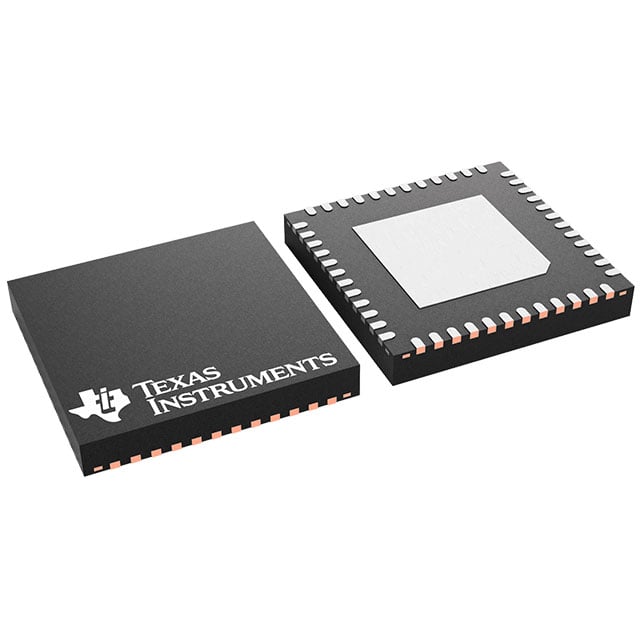

DRV8323RS Three-Phase Smart Gate Driver

Texas Instruments·Motor Drives (BLDC Gate Drivers)·ActiveNew & Original

On request

Order quantity	Unit price	Terms
Pricing on request — send your BOM or target quantity and we quote line by line.

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

New & Original — date-code photo and documentation with every shipment
Lead time on request
MOQ 1 pc — flexible for prototypes and production runs
Tape & reel / cut tape and custom packaging available
Motor Drives (BLDC Gate Drivers) line — availability, approved alternates and pricing checked line by line

Specifications

Manufacturer	Texas Instruments
Manufacturer part number	DRV8323RS
Category	Motor Drives (BLDC Gate Drivers)
Description	TI DRV8323RS 6 V to 60 V three-phase smart gate driver with SPI interface, integrated 600 mA buck regulator and three low-side current sense amplifiers, adjustable slew rate, VQFN-48 — brushless DC motor control for robotics, fans, pumps and e-mobility
Package / case	VQFN-48 (RGZ), 7 x 7 mm
Mounting type	SMD
Condition	New & Original
Datasheet	https://www.ti.com/lit/ds/symlink/drv8323.pdf
Function	Three-phase BLDC / PMSM smart gate driver
Operating voltage	6 V ~ 60 V
Gate drive	3 high-side + 3 low-side N-channel MOSFETs
Peak source current	10 mA ~ 1 A (adjustable)
Peak sink current	20 mA ~ 2 A (adjustable)
Slew rate control	Adjustable
Power supply	High-side charge pump + low-side linear regulator, 100 percent PWM duty support
Integrated buck	LMR16006X, 0.8 V ~ 60 V, 600 mA
Current sense	Triple low-side CSAs, gain 5 / 10 / 20 / 40 V/V
Interface	SPI
PWM modes	6x / 3x / 1x / independent
Logic	1.8 V / 3.3 V / 5 V
Protection	UVLO, CPUV, MOSFET OCP, gate driver fault, thermal warning and shutdown
Package	VQFN-48 (RGZ), 7 x 7 mm
HS code	8542399000

Stock	Sourced to order
Minimum order (MOQ)	1 pc
Lead time	Lead time on request
Unit price	On request — quoted per quantity
Packaging	Tape & reel, 2500 pcs per reel
Notes	DRV8323RH (hardware interface) and DRV8323S (without buck) variants sourced on request

Pin-compatible

Ask us — we source cross-references on request.

Same spec · other brand

Ask us — we source cross-references on request.

Functional equivalent

Ask us — we source cross-references on request.
