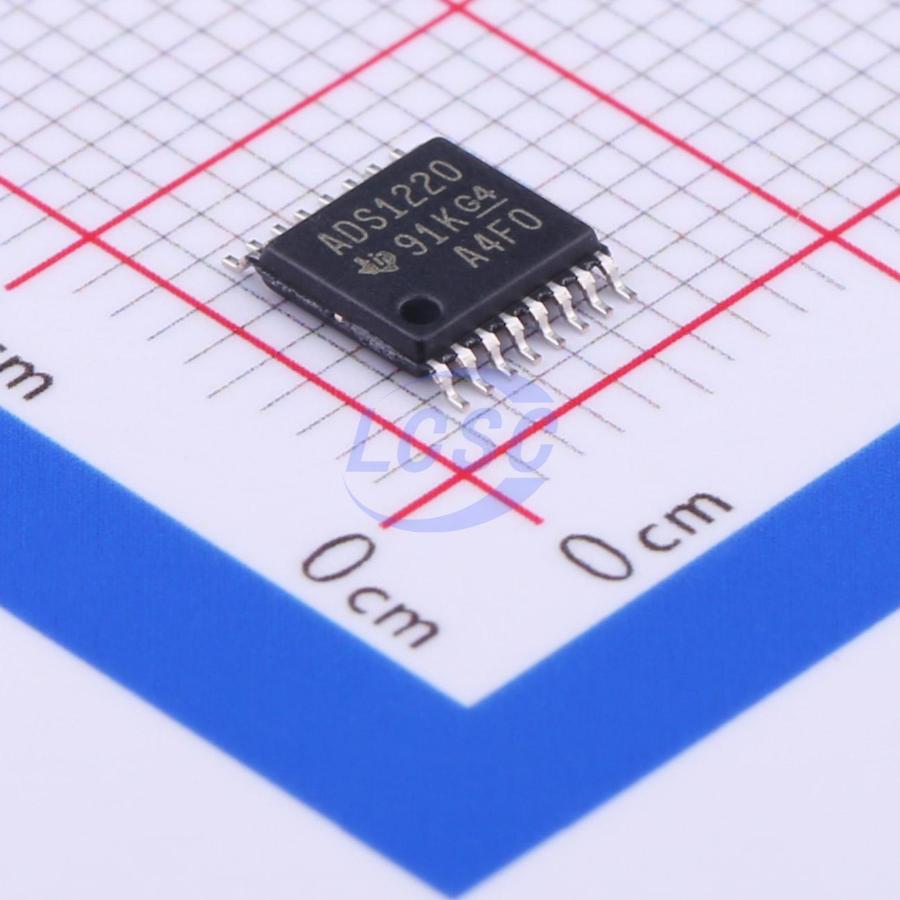

ADS1220 24-Bit 2kSPS Delta-Sigma ADC

Texas Instruments·24-Bit Delta-Sigma ADC·ActiveNew & Original

ADS1220 24-Bit 2kSPS Delta-Sigma ADC
US$1.4214
Order quantityUnit priceTerms
1-9US$2.2468EXW
10-29US$1.948EXW
30-99US$1.7367EXW
100-499US$1.5452EXW
500-999US$1.4561EXW
1000+US$1.4214EXW

Prices are indicative starting points — send your BOM and target quantity for an exact quotation. · FOB / DDP on request

  • New & Original — date-code photo and documentation with every shipment
  • Lead time on request
  • MOQ 1 pc — flexible for prototypes and production runs
  • Tape & reel / cut tape and custom packaging available
  • 24-Bit Delta-Sigma ADC line — availability, approved alternates and pricing checked line by line
Get A Quote Back to Parts

Specifications

ManufacturerTexas Instruments
Manufacturer part numberADS1220IPWR
Category24-Bit Delta-Sigma ADC
DescriptionTI ADS1220 24-bit delta-sigma ADC with 2 kSPS, a gain-128 PGA, two excitation current sources and an internal 2.048 V reference, used for RTD, thermocouple, strain gauge and bridge measurements in industrial sensors.
Package / caseTSSOP-16
Mounting typeSMD
ConditionNew & Original
Datasheethttps://www.ti.com/lit/ds/symlink/ads1220.pdf
Resolution24 bit
Rate2 kSPS
Channels2 diff / 4 single
PGA1-128
Supply2.3-5.5 V
InterfaceSPI

Availability & supply

StockSourced to order
Minimum order (MOQ)1 pc
Lead timeLead time on request
Unit price1-9: US$2.2468 · 10-29: US$1.948 · 30-99: US$1.7367 · 100-499: US$1.5452 · 500-999: US$1.4561 · 1000+: US$1.4214
PackagingTape & reel
NotesC48263; 120 uA in duty-cycle mode; simultaneous 50 Hz and 60 Hz rejection at 20 SPS removes mains noise without an external filter; LCSC USD ladder, verify at quote

Alternatives & cross-references

Pin-compatible
Ask us — we source cross-references on request.
Same spec · other brand
Ask us — we source cross-references on request.
Functional equivalent
Ask us — we source cross-references on request.

Quality & compliance

Traceability
Every line ships with manufacturer / distributor documentation and a date-code photo taken before dispatch.
Incoming inspection
Parts checked for marking, packaging and count on receipt; X-ray / decapsulation available on request for high-value lines.
Certificates on request
COC / COA / RoHS declaration issued with the shipment. Full lot traceability kept for 24 months.
